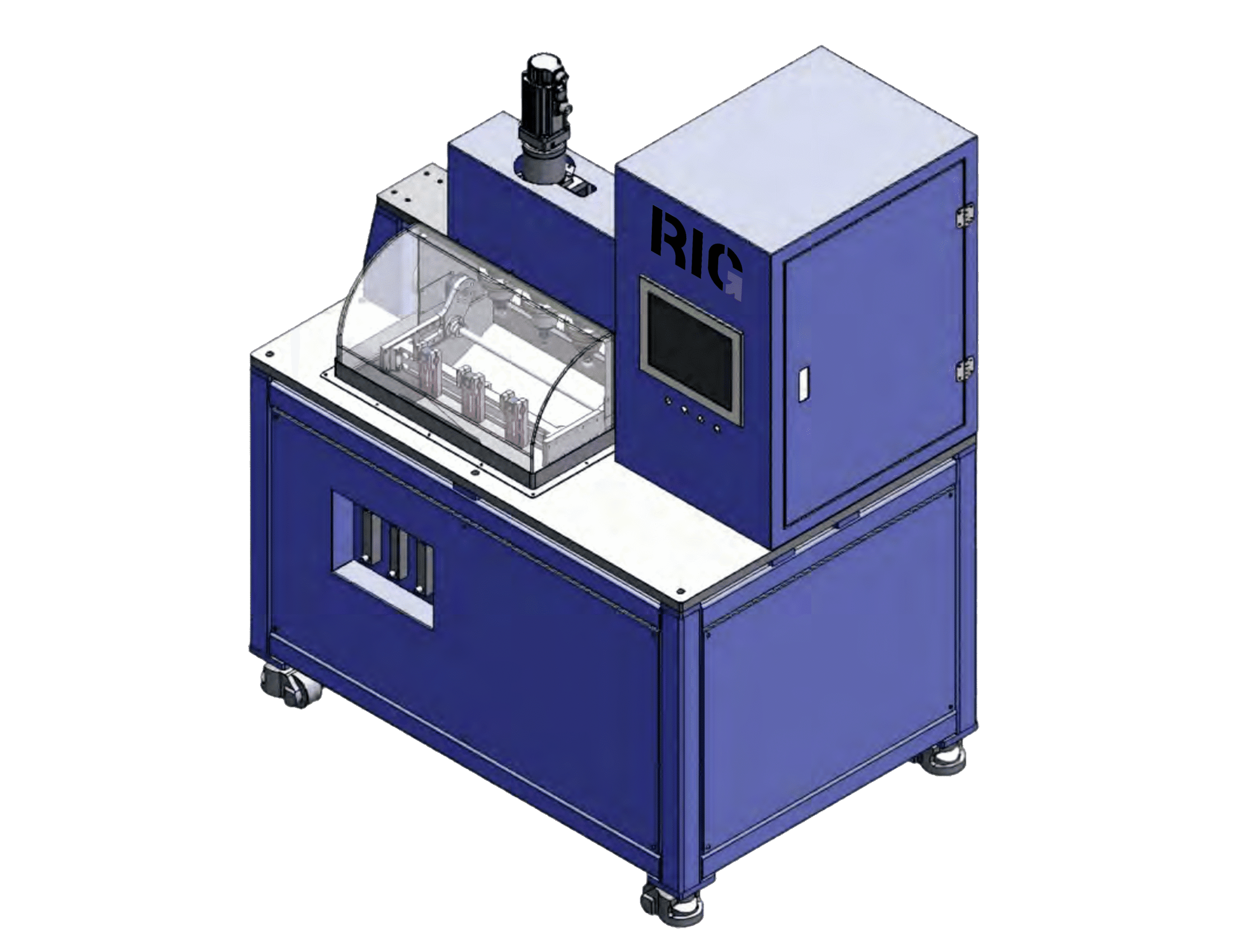

The RIG-T108 Ball Joint Muddy Water Durability Testing Machine is specifically designed to simulate the harsh conditions ball joints and suspension components experience when exposed to muddy water in real-world environments. It is an essential tool for testing the durability and performance of ball joints in conditions that mimic off-road driving, where water, mud, and debris can have a significant impact on the function and longevity of these components.

This testing machine applies oscillatory motion to the ball joints while simultaneously exposing them to a misting jet of muddy water, ensuring that the parts are subjected to both dynamic forces and environmental factors. The system’s key features allow it to replicate the impact of road slurry and test components under different movement angles and rotation frequencies, which are essential to evaluate their durability and sealing capabilities.

Key features of the RIG-T108 include:

• Oscillation and Rotation Testing: The machine applies an oscillation angle of ±20° with an oscillation frequency range of 1-3 Hz and a rotation angle of ±40°, replicating real-world stresses on the ball joints.

• Mud and Water Misting System: The system includes a misting water jet with an adjustable flow rate of 0.5L/min to 3L/min, ensuring accurate simulation of the exposure to mud and water.

• Durability Testing Under Harsh Conditions: By combining dynamic motion with muddy water spray, the RIG-T108 tests the sealing integrity and fatigue resistance of ball joints and suspension parts under extreme conditions.

• Frequency Control: The machine operates at a rotation frequency range of 0.3-1Hz, providing flexibility to test different component designs and simulate various real-world scenarios.

This machine is essential for automotive manufacturers who need to ensure that their ball joints and suspension components can withstand extreme environmental conditions such as muddy roads, water exposure, and high-frequency vibrations.
