Client Overview:
The client, Anhui Zhongding Huitong Automotive Parts Co., Ltd., is a key player in the automotive components sector, particularly known for its expertise in steering systems and suspension components. The company approached Chengdu RIG Science & Technology Co., Ltd. to design and manufacture a Mud and Water Durability Testing Machine for ball joint assemblies, in line with the QC/T 648-2015 automotive performance requirements.

Challenge:
The client required a specialized testing machine capable of evaluating the durability of ball joint assemblies, specifically for automotive components exposed to mud and water. The challenge was to develop a system that could simulate real-world conditions such as abrasive mud and water exposure while testing the functionality and reliability of the ball joints under dynamic conditions.

Solution:

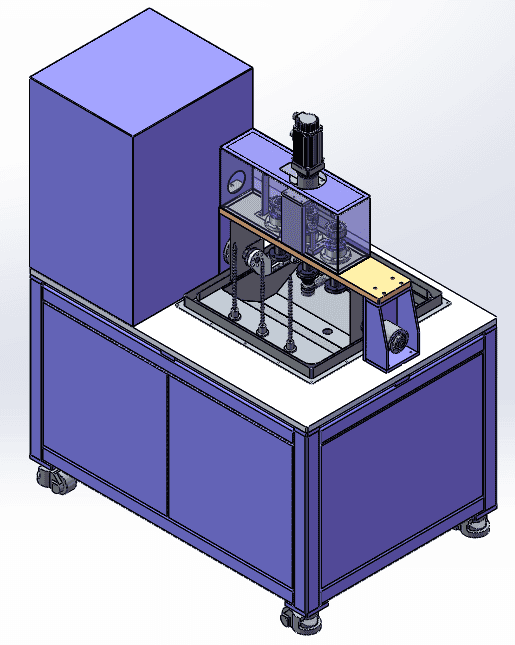

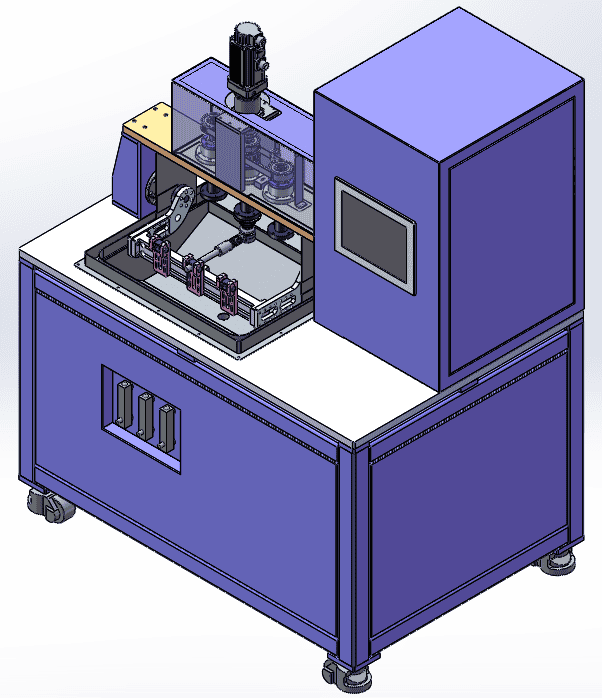

RIG provided the RIG-T108 Mud and Water Durability Testing Machine. This system was designed to accurately simulate the environment in which the ball joint assemblies would operate, ensuring their durability over extended periods of use. Key features of the RIG-T108 system include:

1. Rotational and Oscillatory Motion: The machine enables oscillatory movement (±20°) and rotational motion (±40°) to replicate the movements that ball joint assemblies undergo in real-world conditions.
2. Mud and Water Spray System: Equipped with a high-flow spray system, the machine sprays mud and water at adjustable rates (0.5 to 3 L/min) to simulate the impact of real-world mud and water exposure on the components.

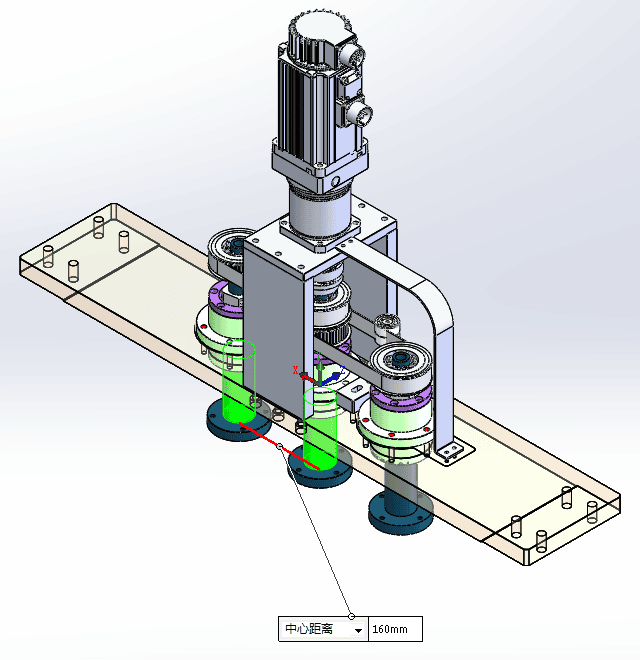

3. Three Test Stations: The system includes three individual test stations, allowing simultaneous testing of multiple ball joint assemblies, increasing throughput and efficiency.
4. Real-Time Data Collection: The system features real-time monitoring and data logging, providing detailed insights into the angle-time curves and the number of oscillations and rotations. This ensures accurate assessment of the assembly’s performance.
5. Durable and Customizable: The machine is built with durable materials, including stainless steel components for the spray system, ensuring the longevity of the equipment. The system is designed to handle multiple test configurations, making it adaptable to various ball joint types.

Implementation:
RIG worked closely with the client to tailor the machine to their specific requirements. After installation and testing at the client’s site, RIG’s team provided comprehensive training on the system’s operation, maintenance, and safety procedures.

Results:

• Enhanced Testing Efficiency: The RIG-T108 reduced the time required for testing and analysis, with a cycle time of approximately 60 seconds per unit, while simultaneously handling multiple test stations.
• Improved Component Durability: By accurately simulating harsh operating conditions, the client was able to identify areas of weakness in their ball joint designs, leading to improved product reliability and quality.
• Optimized Production Processes: The machine provided valuable data that helped the client optimize their manufacturing processes, reduce failure rates, and ensure that their products meet industry standards.

Conclusion:
The RIG-T108 Mud and Water Durability Testing Machine proved to be a valuable solution for testing the durability of automotive ball joints, ensuring that the components could withstand mud and water exposure over prolonged periods. The system’s precision, data collection capabilities, and ability to simulate real-world conditions make it an essential tool for automotive manufacturers seeking to enhance the quality and durability of their products.
